Description

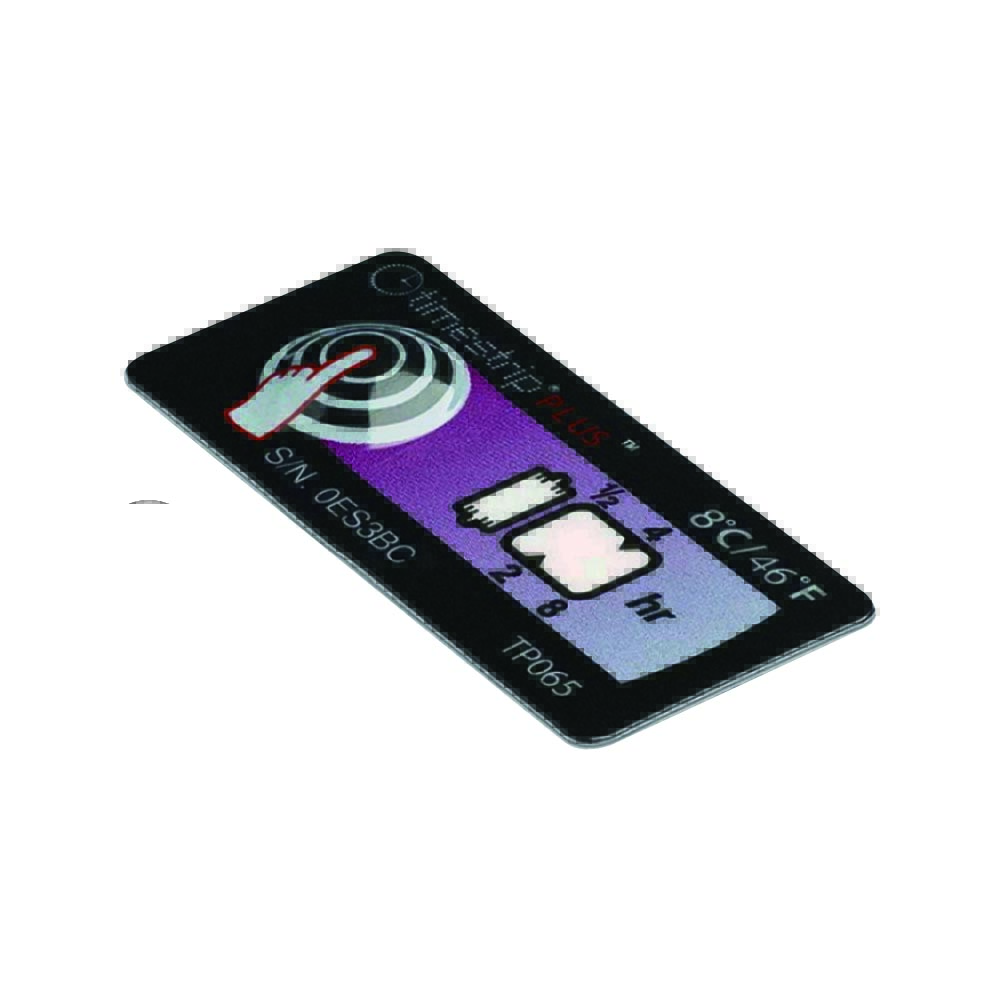

Timestrip PLUS temperature indicators provide simple, quick, and cost-effective solution to temperature control. They record elapsed time at or above a specified threshold temperature; for example at 8°C/46°F for up to 8 hours.
Timestrip® PLUS are small and self-adhesive so they can be attached directly to a product, package or shipment. They can be stored inert at room temperature and then activated without pre-conditioning when required. Simple to use.

How Does TIMESTRIP Works?

All Timestrip PLUS temperature indicators work from three principles. A mixture will melt from solid to liquid form when an ascending temperature threshold is breached and return to solid form if the temperature falls again to its freeze point (STOP temperature). When in liquid form, the mixture will move laterally through a porous membrane at a known rate. The progress of the liquid will be visible through a viewing window.

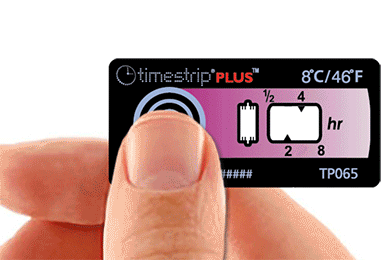

Once any Timestrip® PLUS is activated, if the temperature being monitored remains below the STOP temperature, the blue colour will not move. If the threshold is breached, the blue colour will progress to the viewing window with the time markers. Each movement is irreversible so the cumulative time of any temperature breaches is shown by how far the blue colour has moved along the time markers.

Specification

Blood

Model	Temperature	Time	Type	Size
BT6	6°C	—	Irreversible, single use	19x32mm
BT10	10°C	—	Irreversible, single use	19x32mm

Cold Chain

Model	Temperature	Time	Type	Size
TP-065	8°C	8 hr	Irreversible, single use	19x40mm
TP-077	0°C	12 hr	Irreversible, single use	19x40mm
TP-153	10°C	8 hr	Irreversible, single use	19x40mm
TP-170	-20°C	8 hr	Irreversible, single use	19x40mm
TP-175	8°C	48 hr	Irreversible, single use	19x40mm
TP-176	10°C	48 hr	Irreversible, single use	19x40mm
TP-252	5°C	4 hr	Irreversible, single use	19x35mm
TP-255	3°C	4 hr	Irreversible, single use	19x35mm
TP-348	10°C	4 hr	Irreversible, single use	19x35mm
TP-349	8°C	4 hr	Irreversible, single use	19x35mm

Room Temperature

Model	Temperature	Time	Type	Size
TP-136	30°C	12 hr	Irreversible, single use	19x40mm
TP-217	25°C	12 hr	Irreversible, single use	19x40mm
TP-171	38°C	8 hr	Irreversible, single use	19x40mm
