Shockindicator 37G [Impact Indicator Label]
FEATURES
Description
Shockindicator indicates possible damage during shipment.
Manufacturing in Taiwan, provides nearly 360° detection, highly visible indication when an excessive impact occurs. that can potentially damage products, non-resettable, reduce damage during shipping by up to 70% and damage-related costs.
How Does Shockindicator Help?
The aim to use Shockindicator with package is to reduce the possibility of damaged goods successfully. Shockindicator as a visual reminder of handle with care to carriers that the package is being monitored.
The customers and handlers can clearly see whether the shipment has been dropped or impacted. The tube of Shockindicator is filled with red liquid.

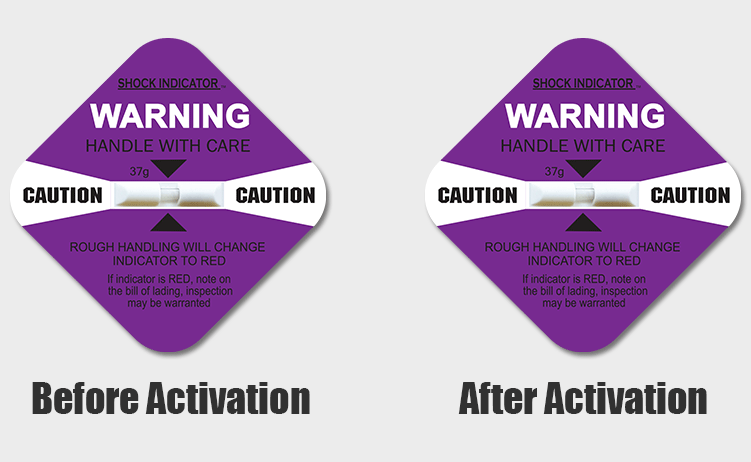

When the package with Shockindicator have dropped or are impacted, the tube of the indication will change from clear to red, indicating damage to the product. Once impact or drop exceeds its set G value, the force breaks the surface tension of liquid and release liquid.
How do I select Shockindicator?
Selection Guide: select the G value you need according to the volume and weight of goods.
Expected Drop-Activation Height: select the g level based on the drop and activation height.
Specification
| Product name | Shockindicator 37G |
| Dimension | 97 x 97 mm (3.81in x 3.81in) |
| Operating temperature | -25℃～+80℃ ( -13℉～176℉) |
| Sensitivity | 37G |
| Induction range | From 25G ~ 100G, during reaction time 0.5 – 50 ms |
| Tolerance | ± 15% |
| Shelf life | 2 years |
| Packing | 50pcs/box,1600pcs/carton |
Accessory
Companion label
Length x Width: 209 x 146 mm ± 2 mm
1. Alert delivery man of indicator is in place.
2. Clearly indicate the Processing Steps for activated the label (Turn Red)
Small sticker
Length x Width: 76 x 25 mm ± 1 mm
Please stick the small warning Sticker on Bill of Lading.

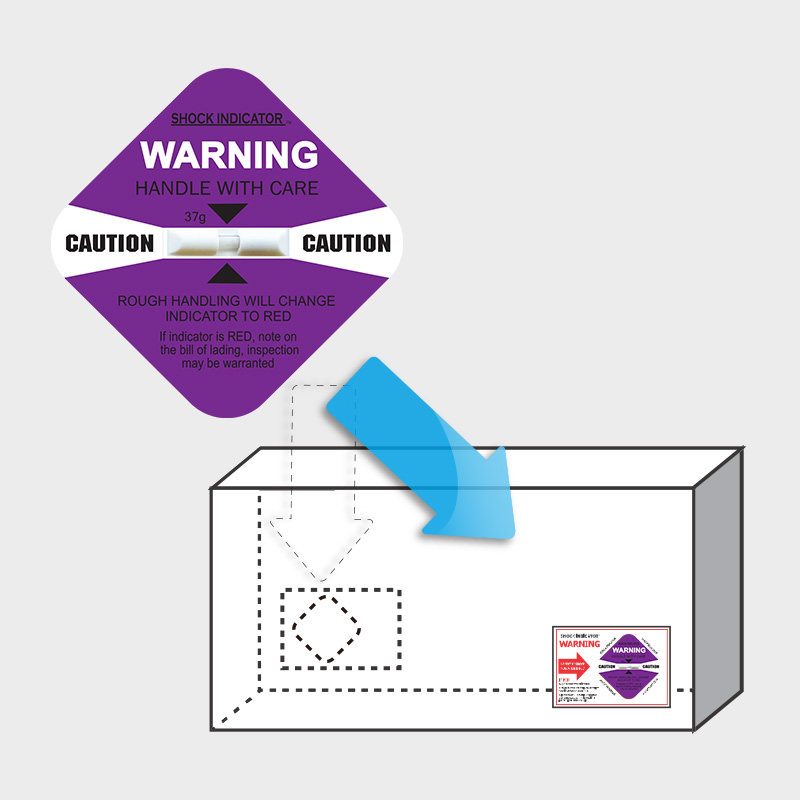

Placement
A. Place Shocksticker label 30.48-35.56 cm (12-14 in) from floor. Use 2 labels both front side and opposite.
B. On heavier boxes(when length is twice the width) or palletized shipments. Use 2 labels both front side and opposite.
