Shockindicator 25G【Shock Indicator Label】
PRODUCT FEATURES
Description
Shockindicator indicates possible damage during shipment.
Manufacturing in Taiwan, provides nearly 360° detection, highly visible indication when an excessive impact occurs. that can potentially damage products, non-resettable, reduce damage during shipping by up to 70% and damage-related costs.
How Does Shockindicator Help?
The aim to use Shockindicator Impact indicator with package is to reduce the possibility of damaged goods successfully. Shockindicator as a visual reminder of handle with care to carriers that the package is being monitored.
The customers and handlers can clearly see whether the shipment has been dropped or impacted. The tube of Shockindicator is filled with red liquid.
When the package with Shockindicator impact label have dropped or are impacted, the tube of the indication will change from clear to red, indicating damage to the product. Once impact or drop exceeds its set G value, the force breaks the surface tension of liquid and release liquid.
What kind of products need Shockindicator?
- Delicate items
- Excessively heavy in total weight
- Occupies significant space once packed
- Minor impact may result in the harm of your products
- Goods cannot experience a drop exceeding 15-30 cm
- Utilizes wooden crate packaging
- Cannot be transported manually
How do I select Shockindicator impact label?

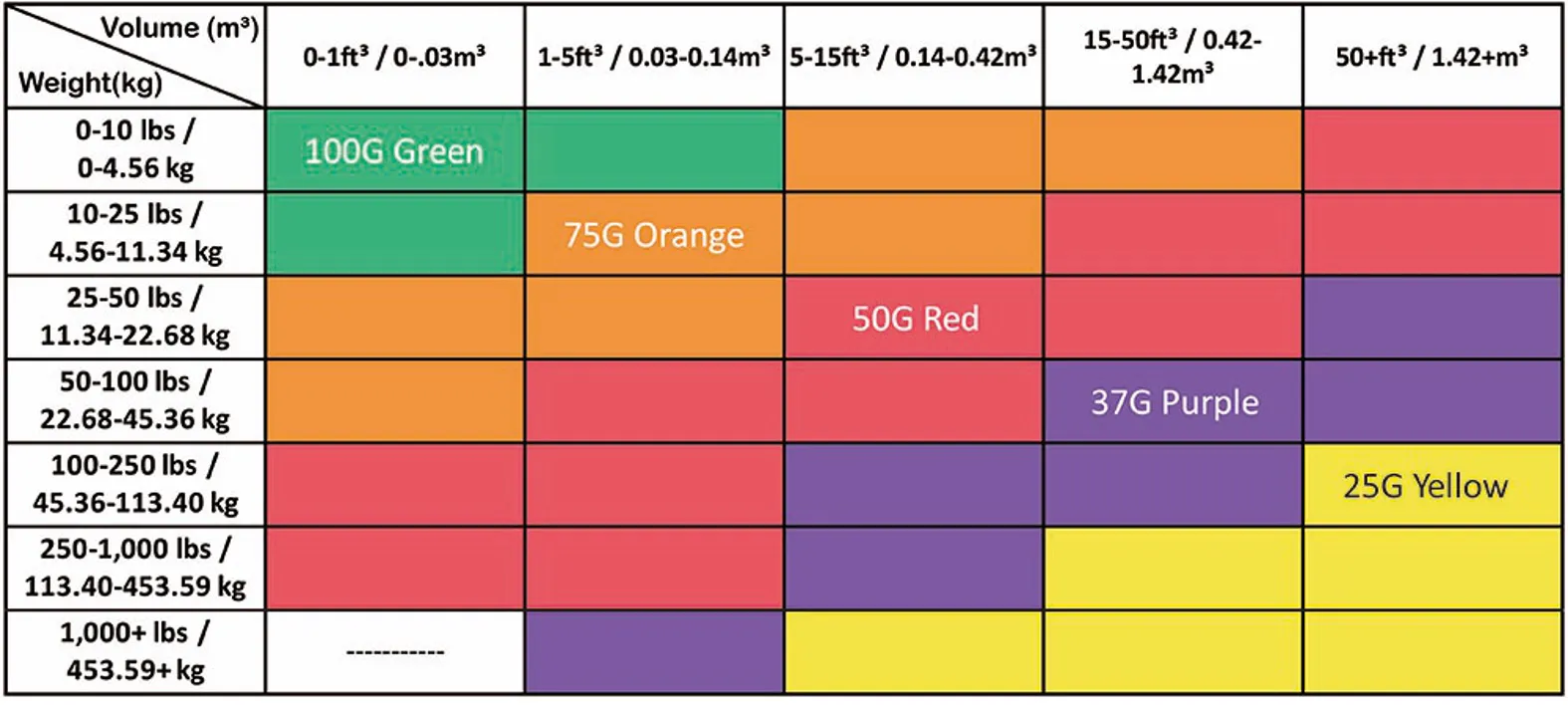

Selection Guide: select the G value you need according to the volume and weight of goods.

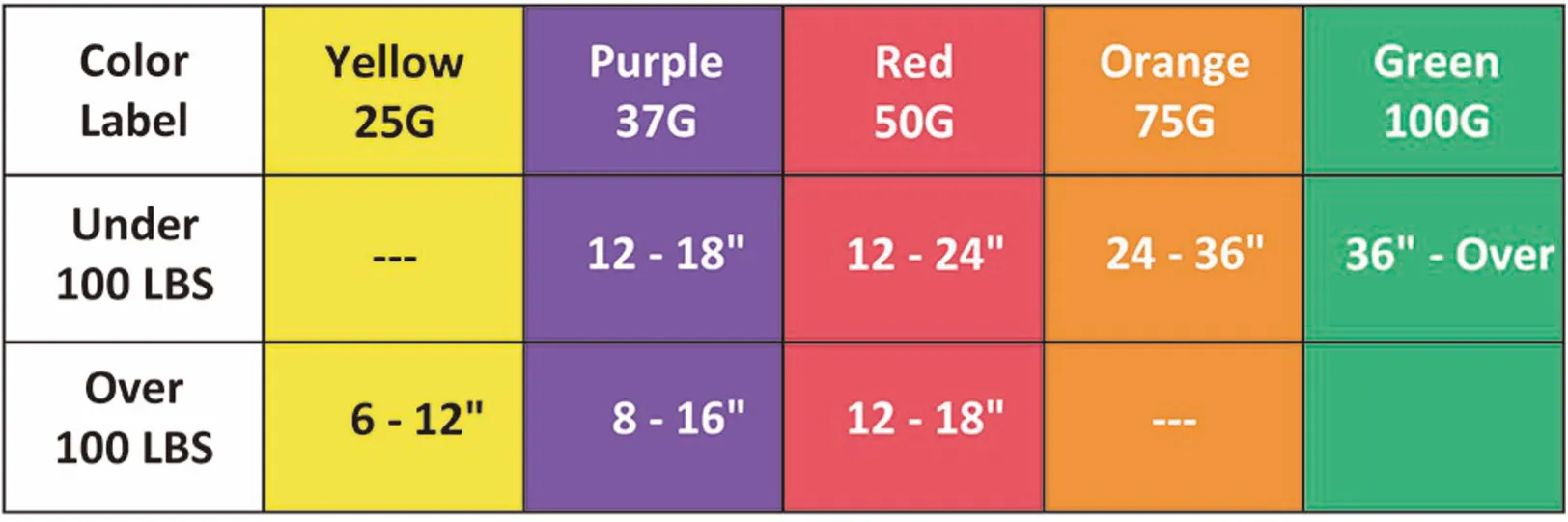

Expected Drop-Activation Height: select the g level based on the drop and activation height.
Specification
| Product name | Shockindicator 25G |
| Dimension | 97 x 97 mm (3.81in x 3.81in) |
| Operating temperature | -25℃～+80℃ ( -13℉～176℉) |
| Sensitivity | 25G |
| Induction range | From 25G ~ 100G, during reaction time 0.5 – 50 ms |
| Tolerance | ± 15% |
| Shelf life | 2 years |
| Packing | 50pcs/box,1600pcs/carton |
Accessory

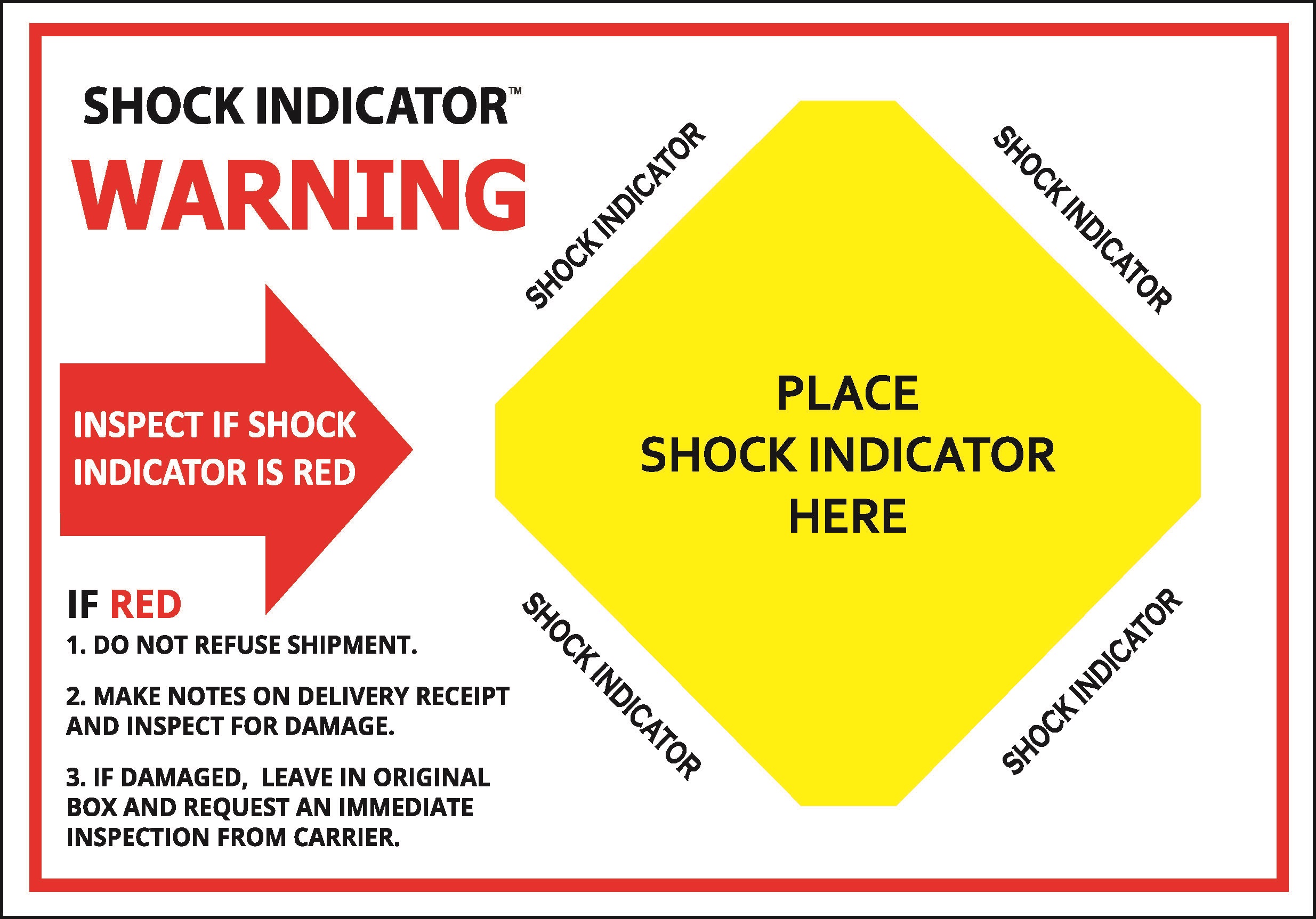

Companion label
Length x Width: 209 x 146 mm ± 2 mm
1. Alert delivery man of indicator is in place.
2. Clearly indicate the Processing Steps for activated the label (Turn Red)
Small sticker
Length x Width: 76 x 25 mm ± 1 mm
Please stick the small warning Sticker on Bill of Lading.

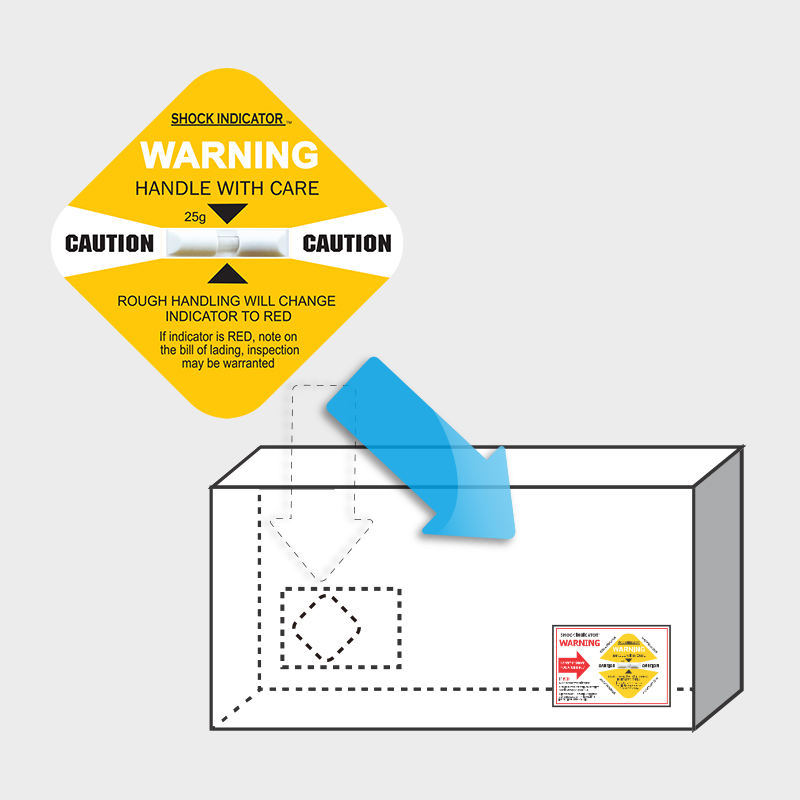

Placement
A. Place Shocksticker label 30.48-35.56 cm (12-14 in) from floor. Use 2 labels both front side and opposite.
B. On heavier boxes(when length is twice the width) or palletized shipments. Use 2 labels both front side and opposite.
